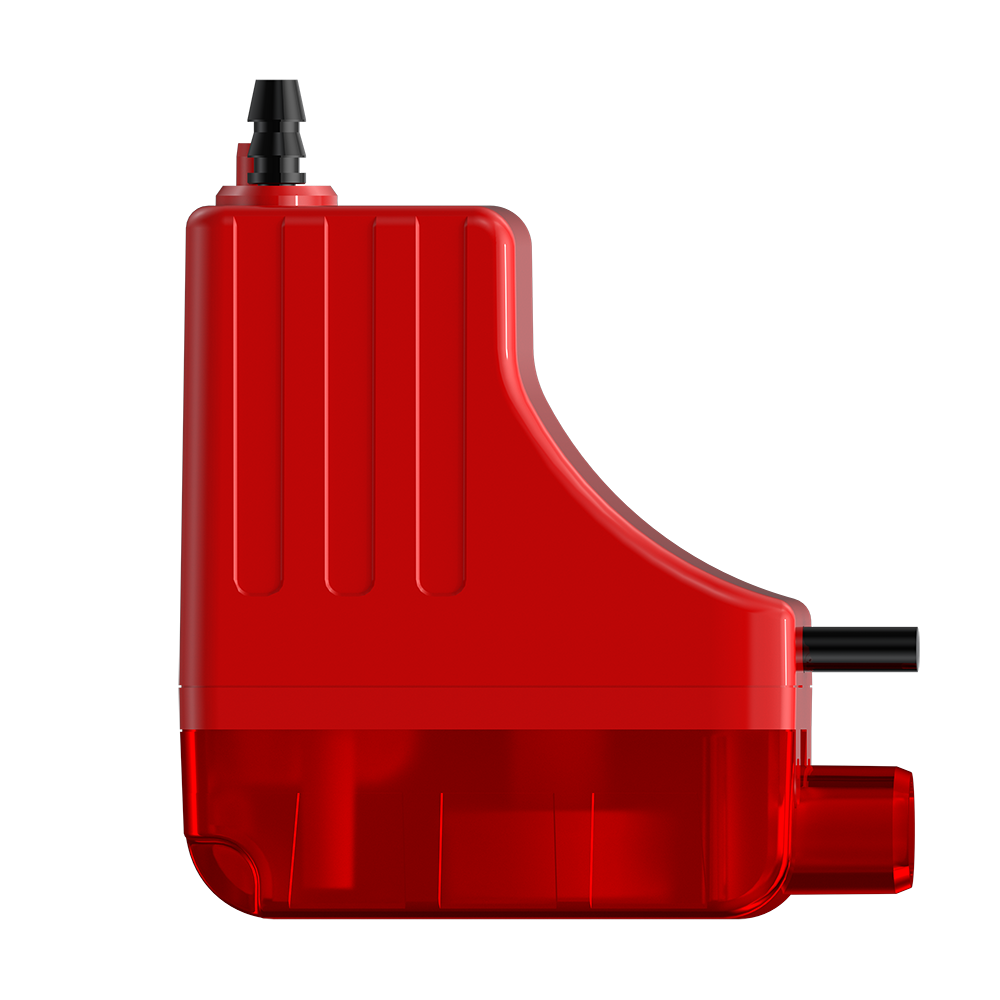

REDBOX TRUNK
A mini condensate pump in the REDBOX series of pumps.
Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 7kW cooling capacity.
Part No Content
Part Name: REDBOX-TRUNK
Description: REDBOX TRUNK MINI CONDENSATE PUMP
Suitable for use on: AC MAX 7kW
Quantity: 1
Brand: REDBOX
Max head: 15m
Max flow: 20 LPH
dB A: 21
External dimensions height: 109.7mm
External dimensions width: 44mm
External dimensions depth: 95.4mm
- Use with Air conditioner (Max. 7kW)
- Fluid Fresh water of 1~40°C
- Power supply 100-240V, 50-60Hz
- Non-continuously rated operating time 5 min on / 1 min off
- Electrical output 3W
- Decibel rating 21 DB(A)
- Safety switch contacts Max. 3A
- Pump size (LxWxH) 95.4 x 44 x 109.7mm
- Max. discharge head 15m
- Reservoir size (LxWxH) 81 x 44 x 24.9mm
- Max. flow rate at zero head 20 LPH
- Drink cycle 16ml
